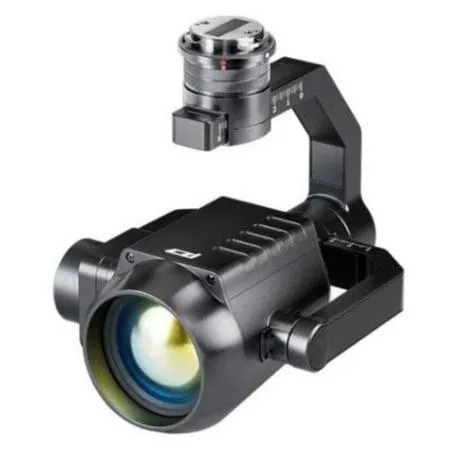

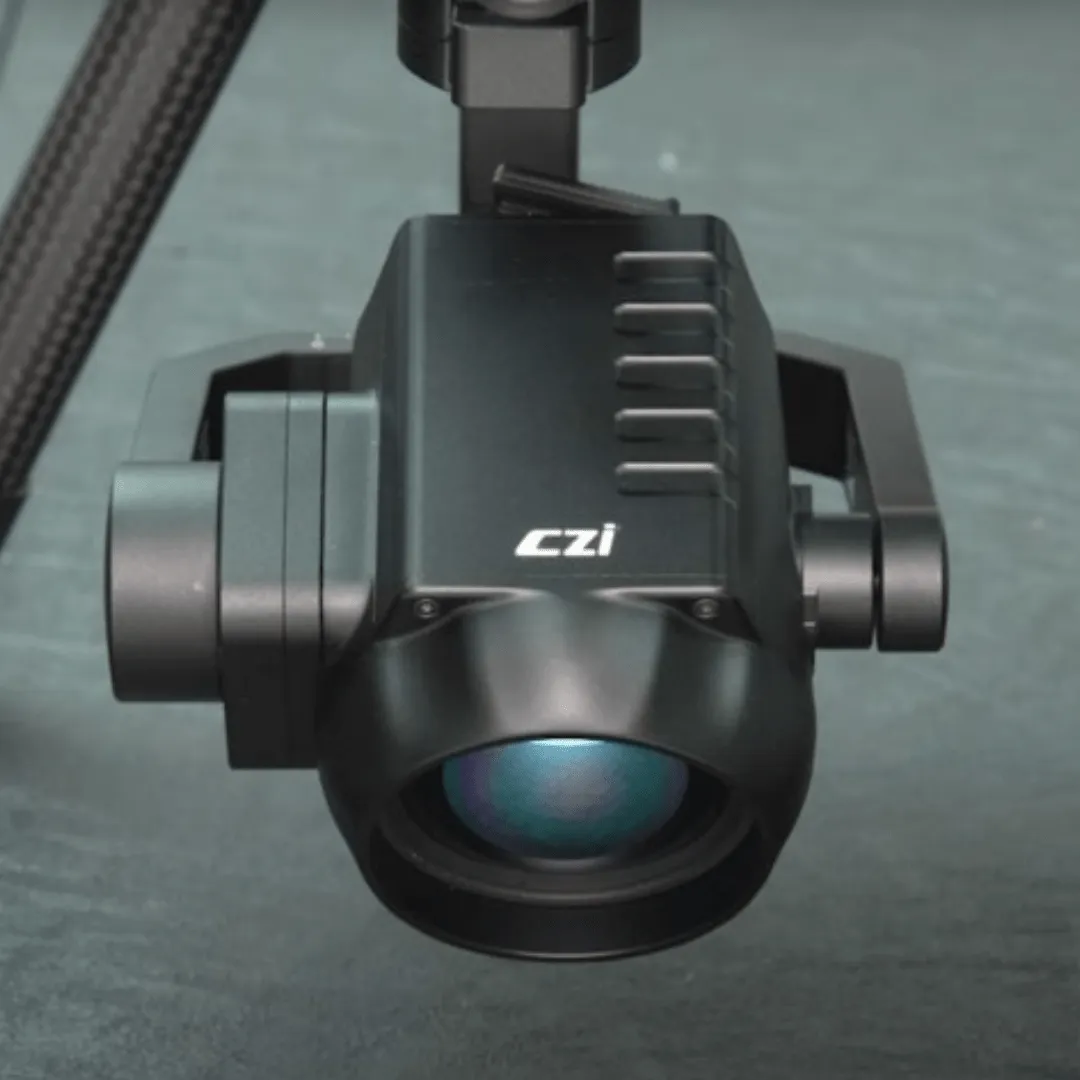

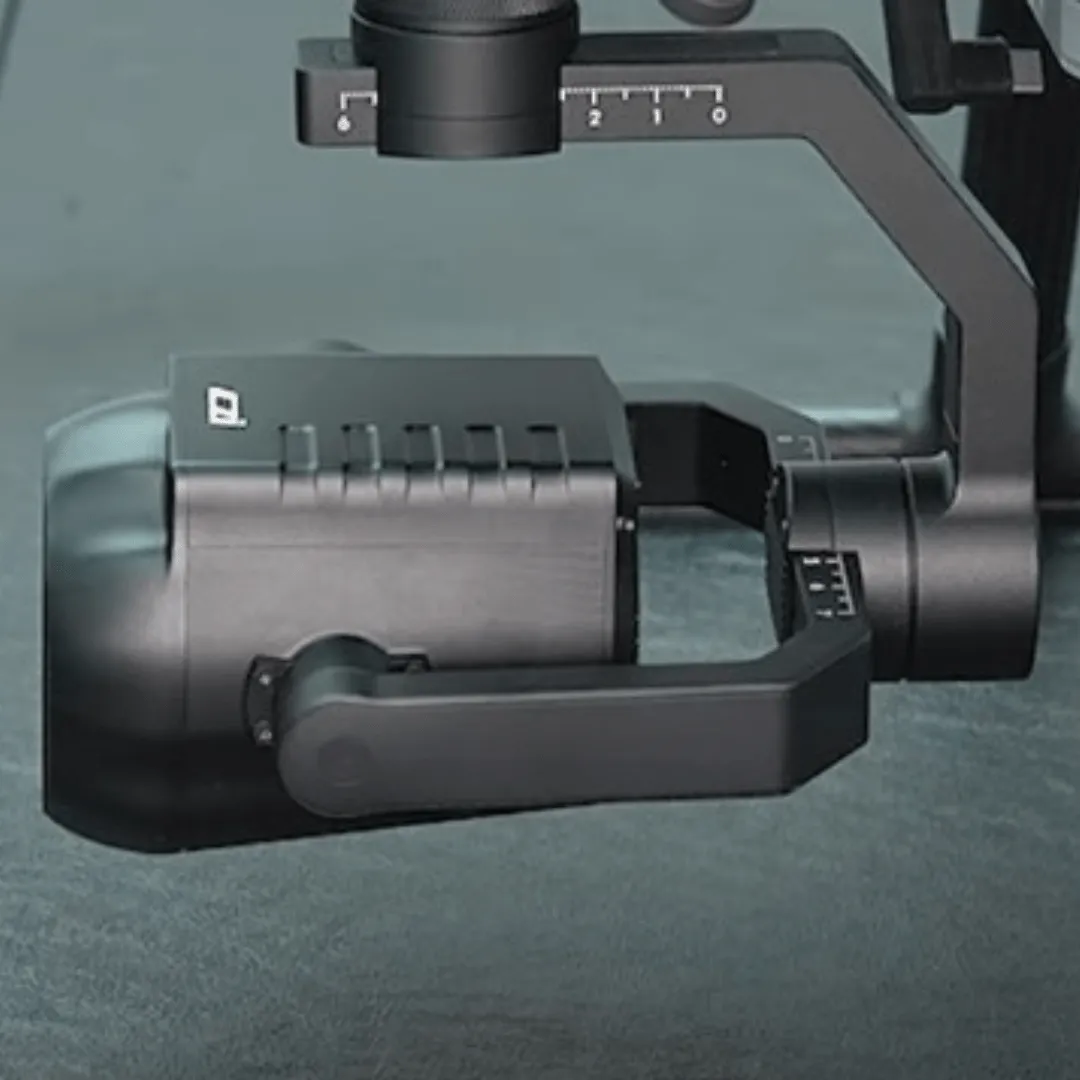

The DJI M300/M350 compatible CZI DT1K Thermal Camera excels in ultra-long-distance target detection and expansive area mapping and modeling. The DT1K provides exceptional image clarity with a resolution of 1280 x 1024 pixels, making it ideal for fire monitoring, locating on-the-ground personnel, and achieving superior target recognition over extended distances.
Equipped with 6 Tops computing power and a variety of AI image algorithms, high precision three-axis gimbals, and compatible CZI Pilot and DJI Pilot 2 apps, the DT1K Thermal Camera expands the potential for numerous complex applications.
Features:
- 1280 x 1024 resolution for pictures and video
- 55m infrared telephoto lens
- Thermal camera has 1x-8x zoom capability
- Infrared processing chip
- Core master control chip
- AI processing chip
- Human, vehicle and vessel target detection
- Automatic target tracking
- Compatible with mainstream modeling software
- One key infrared panorama shooting
- Integrates with Zenmuse H20 camera
CZI DT1K Thermal Camera | High-Resolution Movement, Infrared Real-Time Modeling
Compatibility
DJI Matrice 300
DJI Matrice 350 RTK
In the Box
1 - CZI DT1K Thermal Camera
Specifications
| Model | |
| Weight | 742±10g |
| Size | 165 x 129 x 164 mm |
| Support models | Matrice 300/350 RTK |
| Computing power | 6Tops |
| Gimbal Parameters | |
| Gimbal jitter amount | ±0.01° |
| Installation method | Detachable type |
| Controllable rotation range | Heading axis: ± 320°, pitching axis: -125°~40° |
| Telephoto IR Camera | |
| Thermal imaging sensor | Uncooled Vanadium Oxide (VOX) infrared focal plane detector |
| Lens | DFOV：20.1 Focal length: 55 mm (equivalent focal length: about 121 mm) Aperture: f / 1.1 Focusing distance: 100 m to infinity |
| Digital zoom | 1x~8x |
| Video resolution | 1280X1024 @ 30fps |
| Video format | MP4 |
| Photo resolution | 1280 x 1024 |
| Photo format | JPEG |
| Pixel pitch | 12 um |
| Wavelength range | 8-14 um |
| Sensitivity (NETD) | <50 mK @ f/1.0 |
| Temperature measurement | Area temperature measurement |
| Temperature range | -20°C - 150°C (range varies by distance) |
| Color palette | White heat / Lava / Iron red / Hot iron / Medical / North / Rainbow 1 / Rainbow 2 / Scarlet / Black heat |
| Memory | |
| Memory card type | MicroSD card with a maximum capacity of 128 GB and a transfer speed of UHS-I Speed Grade 3 |
| Storage File System | exFAT |
